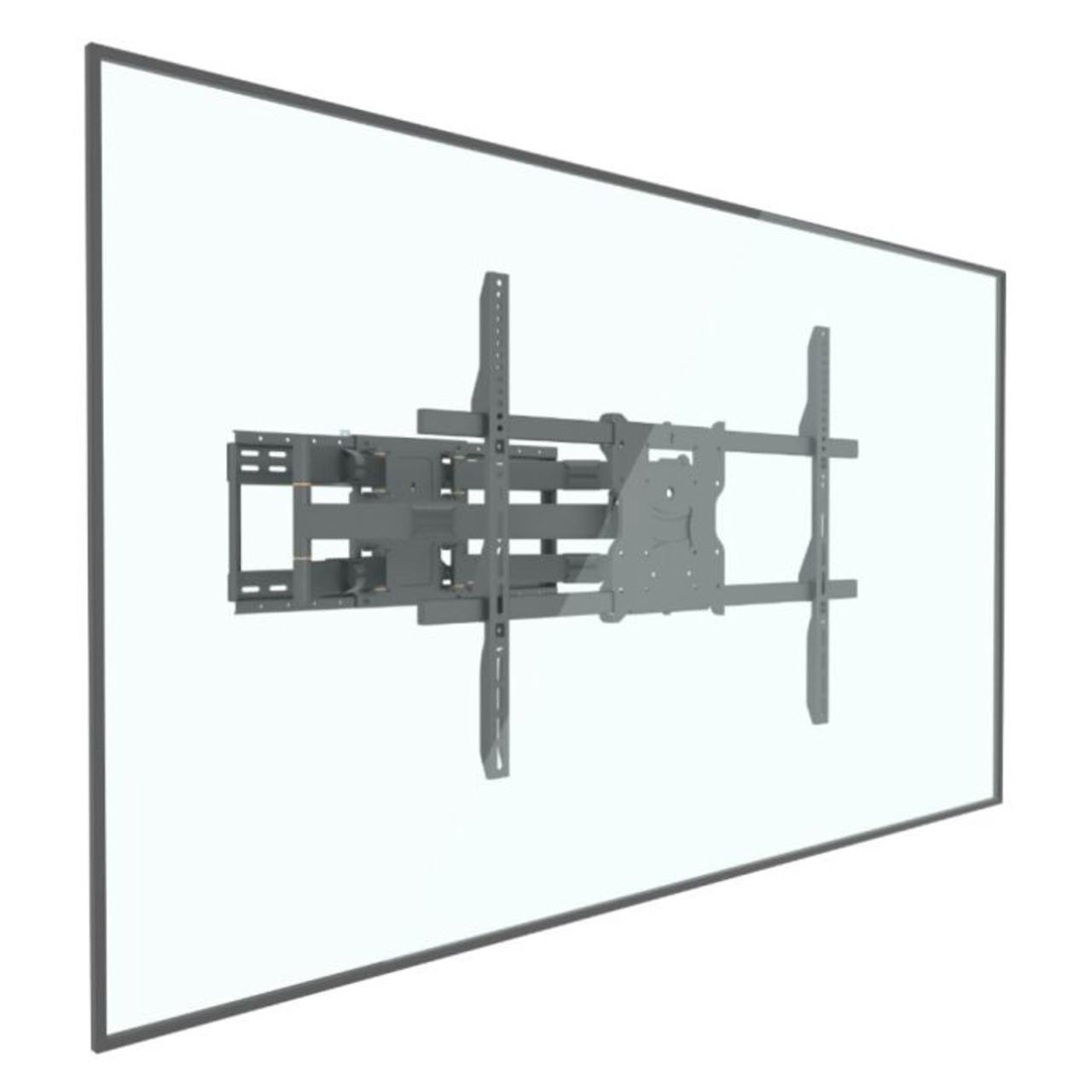

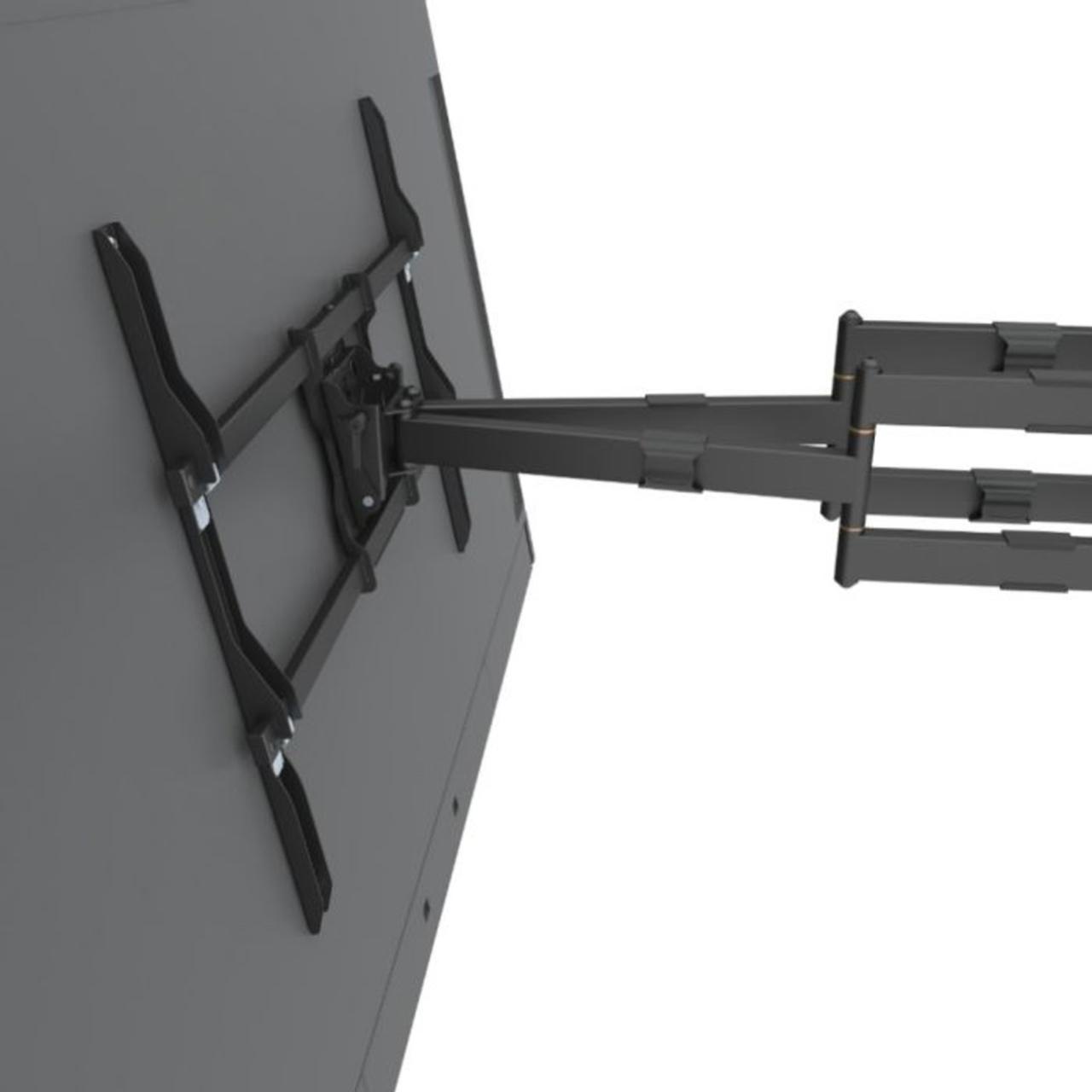

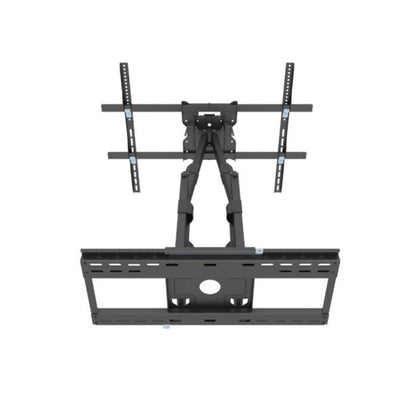

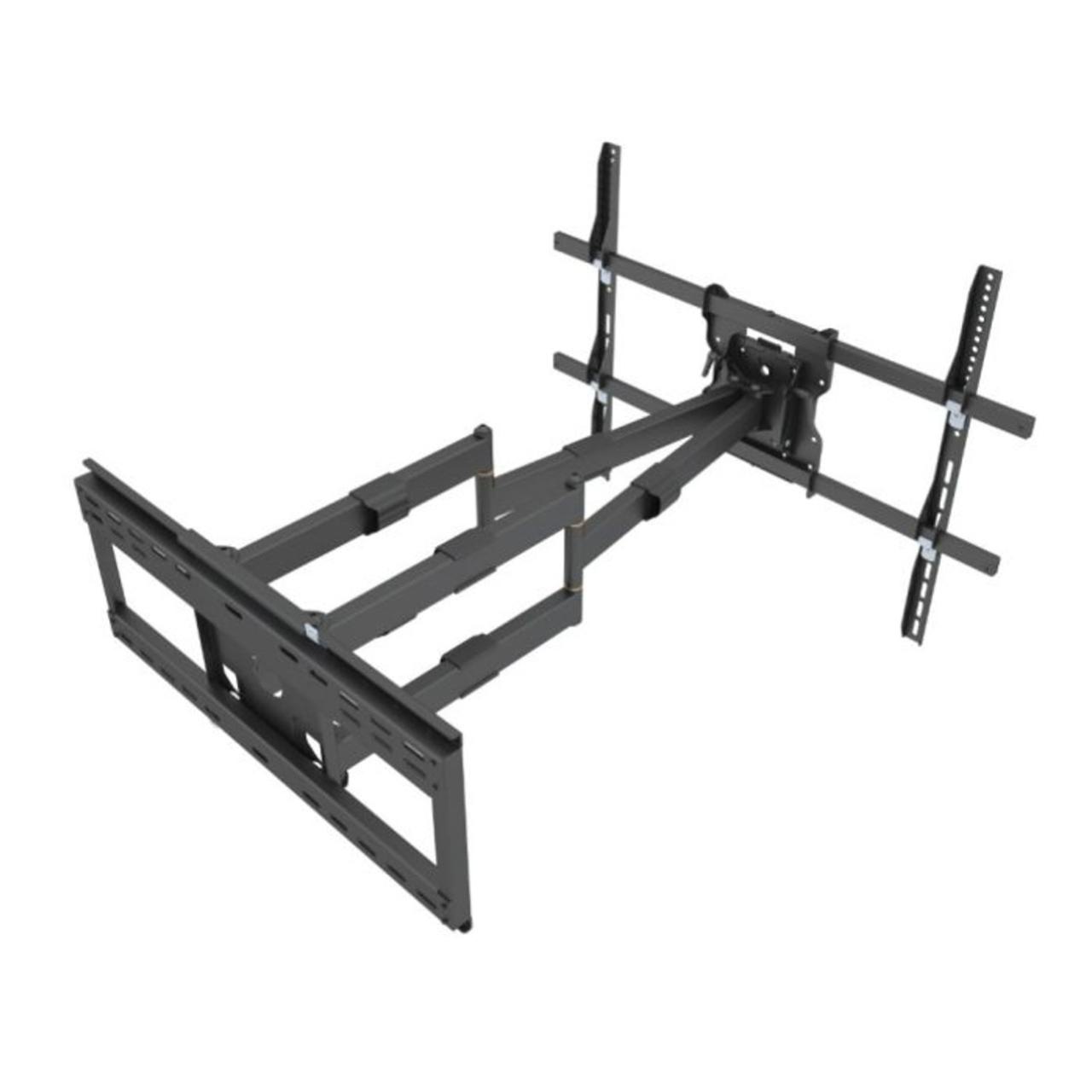

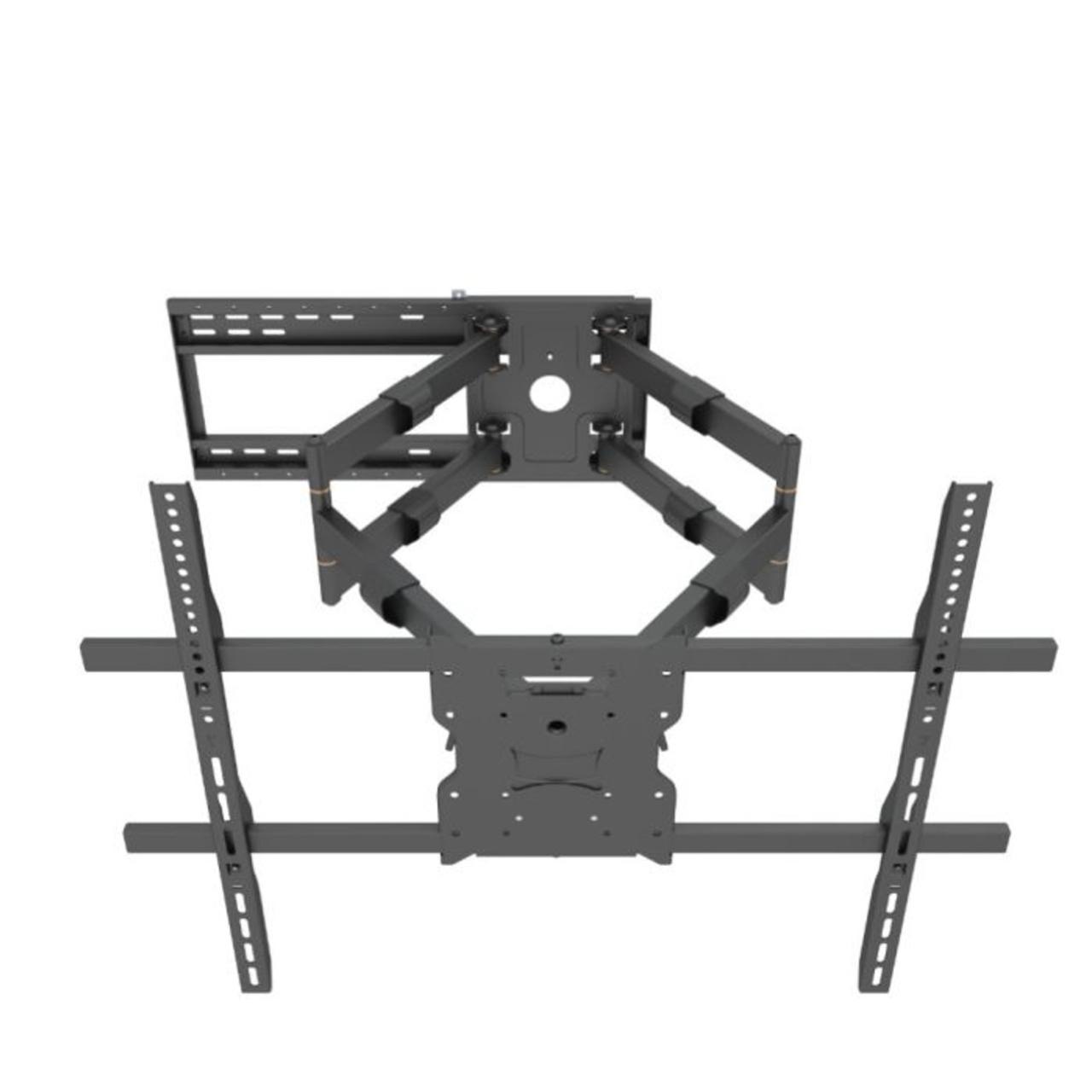

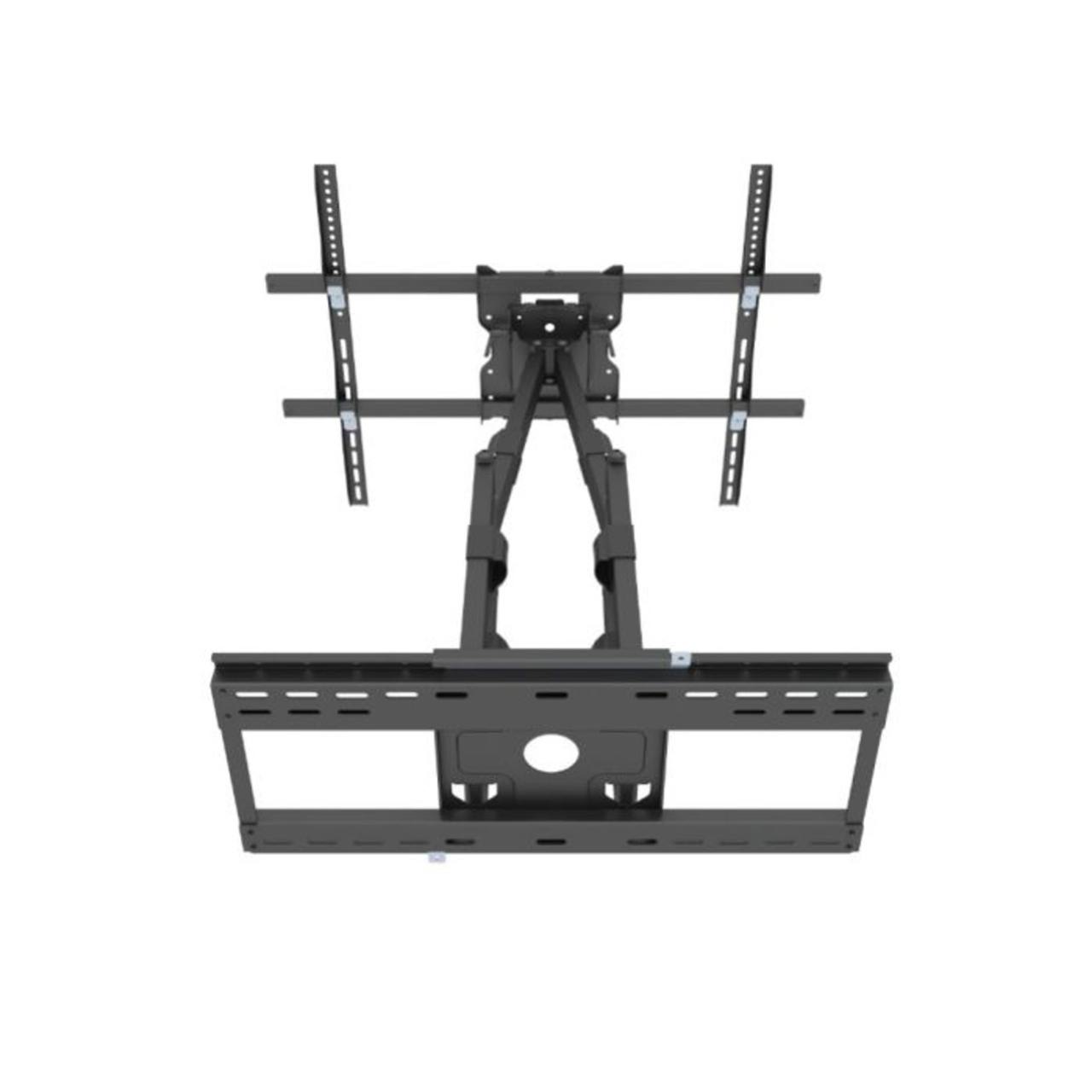

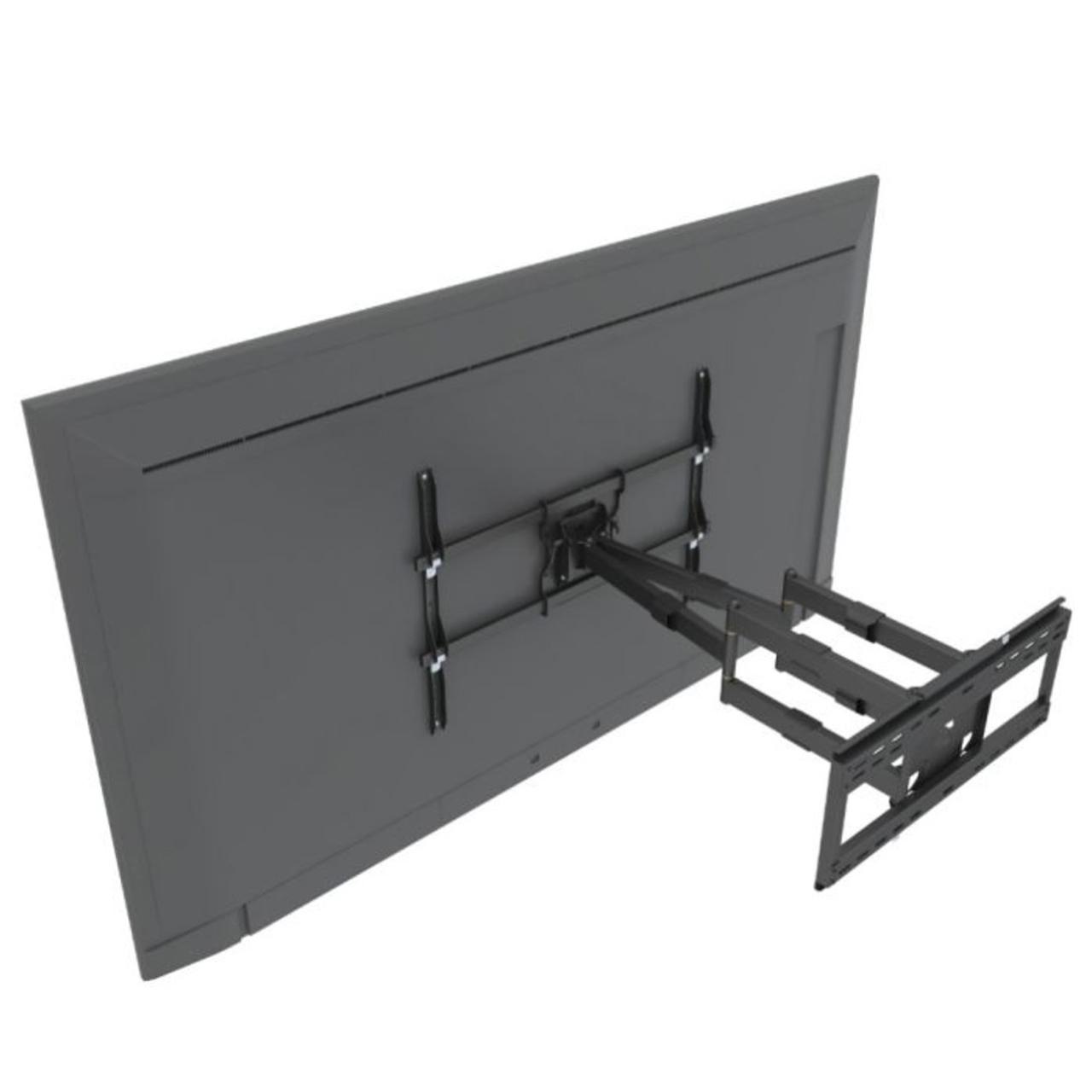

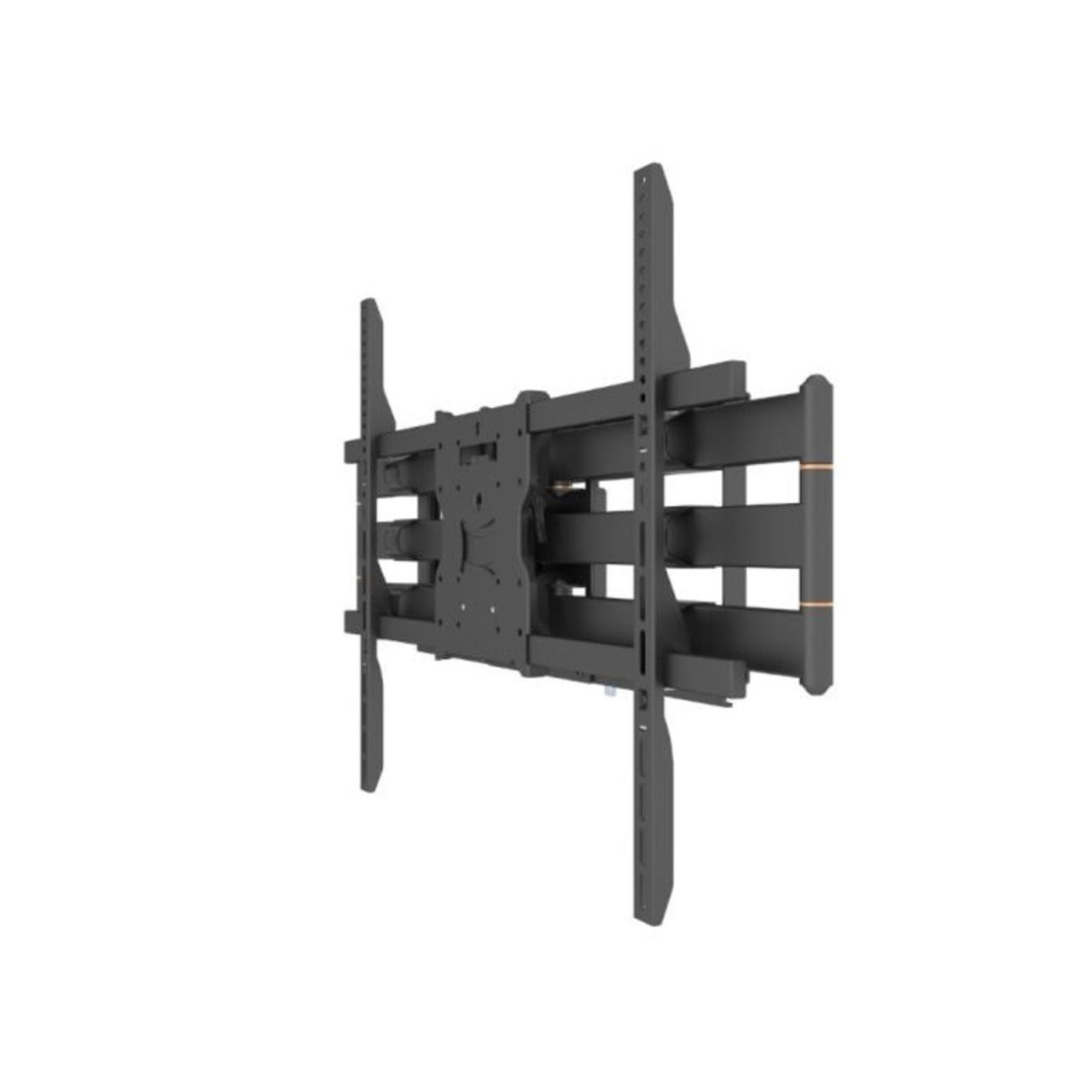

AD-WM-9080 is designed for large and/or heavy displays, in installations requiring full motion and extremely long arm extension. AD-WM-9080 enables the lateral shift of the centre of the display, upward and downward tilt, and rotational display adjustment, plus almost a metre extension from the wall. The mount accommodates use on stud walls with 24" stud spacing. This mount is rated for 90.7kg (200lbs) displays and a recommended size of 50" - 100". When used with displays at the lower end of the size range, even greater freedom of movement is available. Designed for easy installation, AD-WM-9080 arrives pre-assembled with all display mounting fasteners. Wall mounting hardware is not included
Designed for Large and/or heavy displays to 90kg
Arm extension to 980mm (39") from wall
Lateral shift during installation
Pan, up/down tilt, and rotational adjustment with display mounted
Integrated cable management
VESA mounting pattern 100x100 to 800x600
Pre-assembled for quick and easy installation
Wall mount hardware not included
10-year warranty
Extreme freedom of movement with display tilt, pan, and rotation
